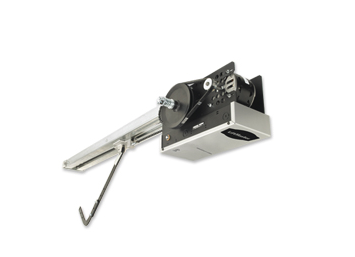

Medium-Duty Logic Trolley Operator (MT)
Safest Installations. Smartest Innovations
• For standard-lift sectional doors
• Medium-Duty Logic programmable integrated circuit board
• High-starting torque motor with overload protection
• Quiet-gliding rail spacers
• Quick-mount swivel header bracket
• Built-in 315 MHz receiver
UL325-2010 Compliant Medium-Duty Logic technology provides primary monitored entrapment protection; a required safety regulation. This insures that the appropriate safety devices, a monitored photo sensor or monitored sensing edge, are functional in all operator formats.
The innovative design of Medium-Duty Logic also provides reliable service and exceptional value to economically meet the needs of a variety of commercial door applications.
Powerful 1/2 HP, 115V single-phase motor with instant reverse, capacitor start and overload protection. Removable without affecting limit switch settings.
Spring-loaded disconnect for emergency manual operation.
Solid-state Medium-Duty Logic circuit board.
24V NEC Class 2.
All operators are factory preset to C2 mode, providing momentary contact to open and stop, with constant contact to close. Monitored entrapment protection, using approved photo sensors or sensing edges, is optional, although recommended, when using this wiring type. Momentary contact to close (B2 mode) is an available optional wiring type, but can only be selected when the appropriate monitored entrapment protection device, either LiftMaster® CPS-U / CPS-UN4 photo sensors or a monitored 4-wire sensing edge (via the CPS-EI interface), is present. The Medium-Duty Logic operator is pre- wired to accept CPS-U/ CPS-UN4 / CPS-EI monitored entrapment protection devices.
First-stage heavy-duty 4L V-belt; second and third stages #48 chain.
Heavy-duty oil-filled bushings.
Adjustable friction clutch helps protect against damage to the door and operator should the door meet an obstruction.
Push Button Station
3-button station, for open/close/stop functions, is standard for all operators. Controls with 1, 2 and 3 buttons are available.
315 MHz radio receiver is integral to the Medium-Duty Logic board. Accepts up to 20 Security+® remote controls and unlimited DIP switch remote controls.
NEMA 1 type electrical box, heavy-duty 11-gauge steel frame with baked-on powdercoat finish, all reduction sprockets drilled and pinned to shafts.
High-strength dual L-rail track with exclusive nylon quiet-gliding chain guides on rail spacers for quiet, smooth operation. Includes quick-mount header bracket, which provides fast, swing-up installation.
