3630

Thickness: 3 Layer Sandwich
Paint: 1.0 Mil
Efficiency: 10.25 R-Value
Interior: Steel Skin

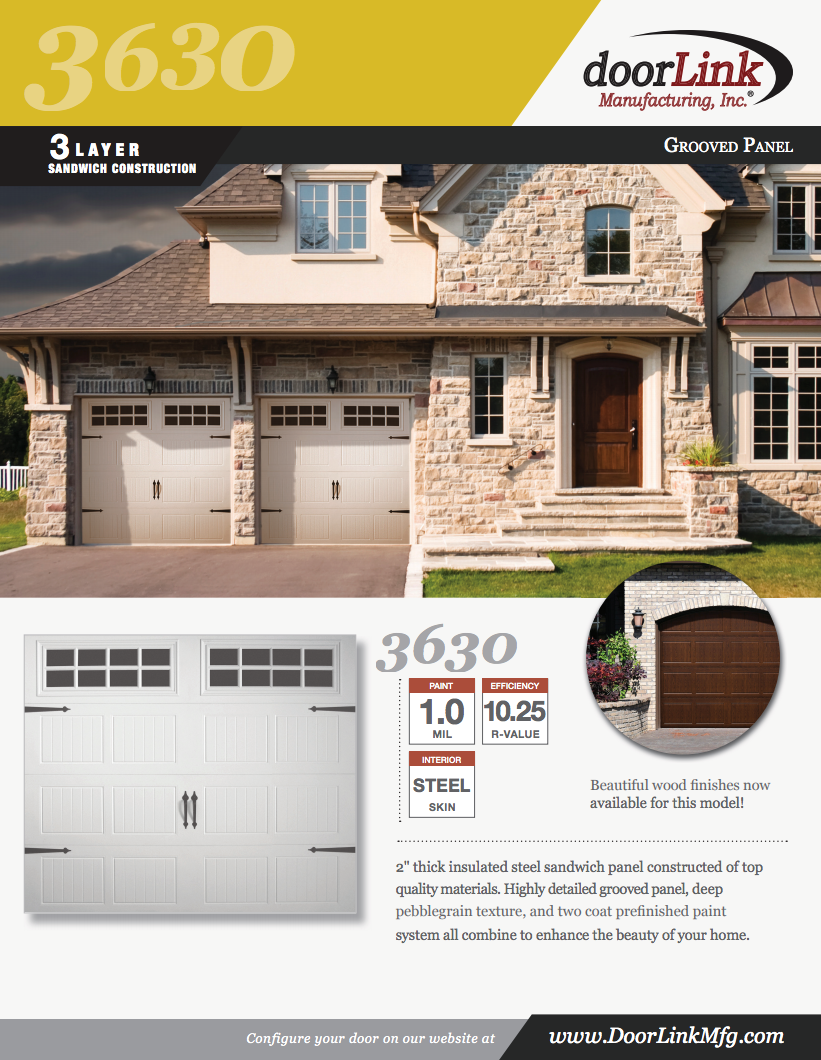

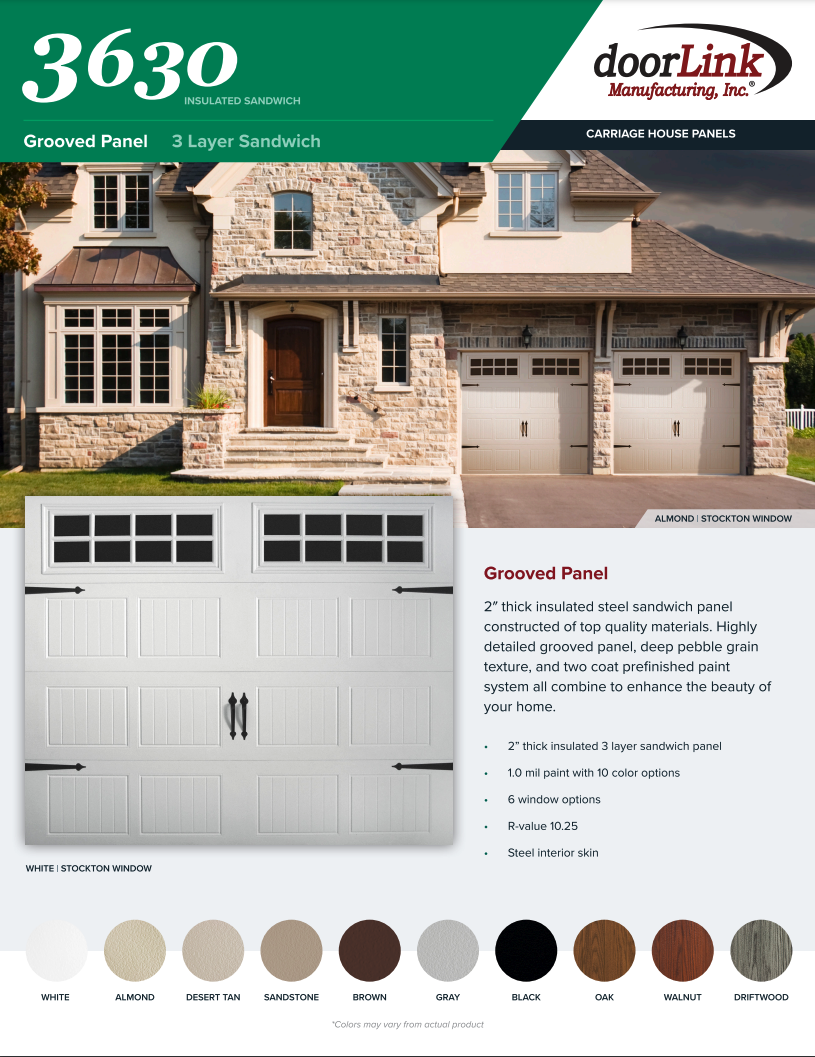

2″ thick insulated sandwich panel constructed of top quality materials. Highly detailed short recessed panel, deep pebblegrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.

Beautiful Wood Finishes Now Available for This Model!

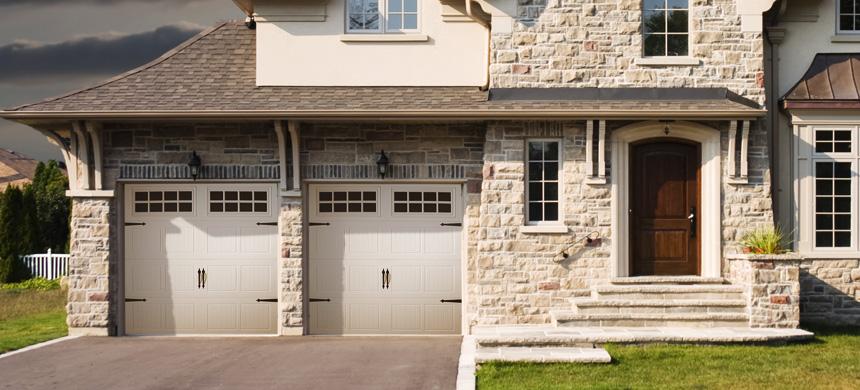

Timeless Carriage House Design

CLICK FOR MORE INFORMATION


Available Windows

Sherwood

Williamsburg

Cascade

Stockton

Stockbridge

Prairie

Not all glazing options may be available from all distributors.

Standard Features

26 gauge metal

Hot dipped galvanized steel construction provides superior strength and durability.

1.0 mil paint system

Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.

20 Gauge hot dipped steel hinge plates

Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts and step plates.

tongue and groove meeting rails

For superior strength and better sealing against wind, rain and snow.

Rigid aluminum retainer

Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.

R Value 10.25 Insulation

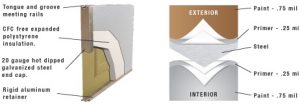

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of 26 gauge hot dipped galvanized steel enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.

CFC Free expanded polystyrene

Environmentally friendly insulation that will not degrade with vibration or time.

Directional Wood Grain on Walnut & Oak Colors

Directional wood grain pattern gives the appearance of traditional wood doors.

Color Options

Construction


Size Options

Door Widths

  • 8′
  • 9′
  • 10′
  • 12′
  • 14′
  • 15′
  • 16′
  • 17′
  • 18′
  • 20′
  • 22′
  • 24′
Residential Steel Door Warranty

Panels Wide

□ □  □ □
□ □  □ □  □ □
□ □  □ □  □ □  □ □
□ □  □ □  □ □  □ □  □ □

Garage Door Painting Guide

Heights Available

  • 6’6″
  • 6’9″
  • 7’0″
  • 7’6″
  • 7’9″
  • 8’0″
Glass Options
