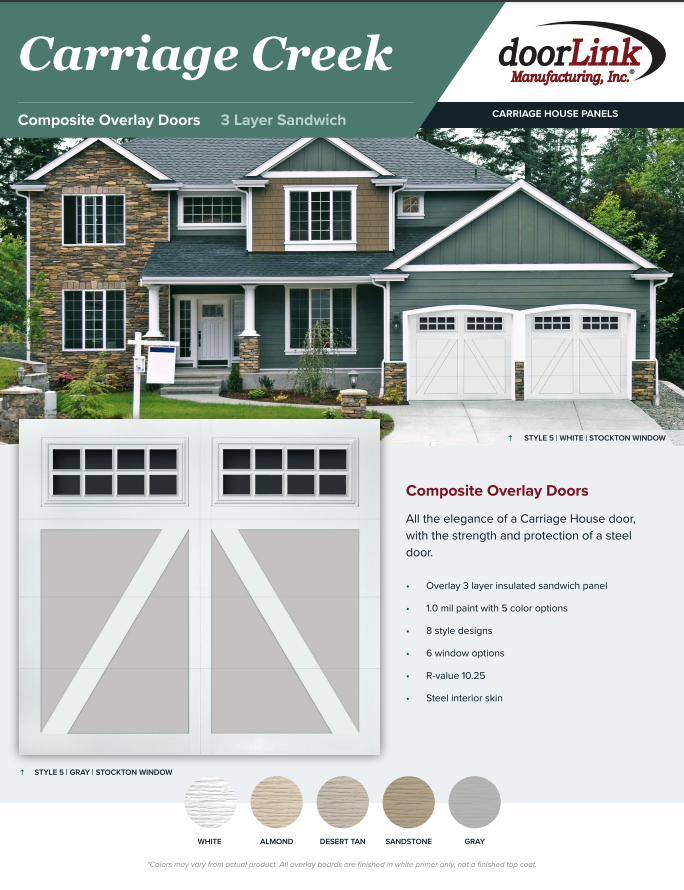

Carriage Creek
All the elegance of a Carriage House door, with the strength and protection of a steel door.

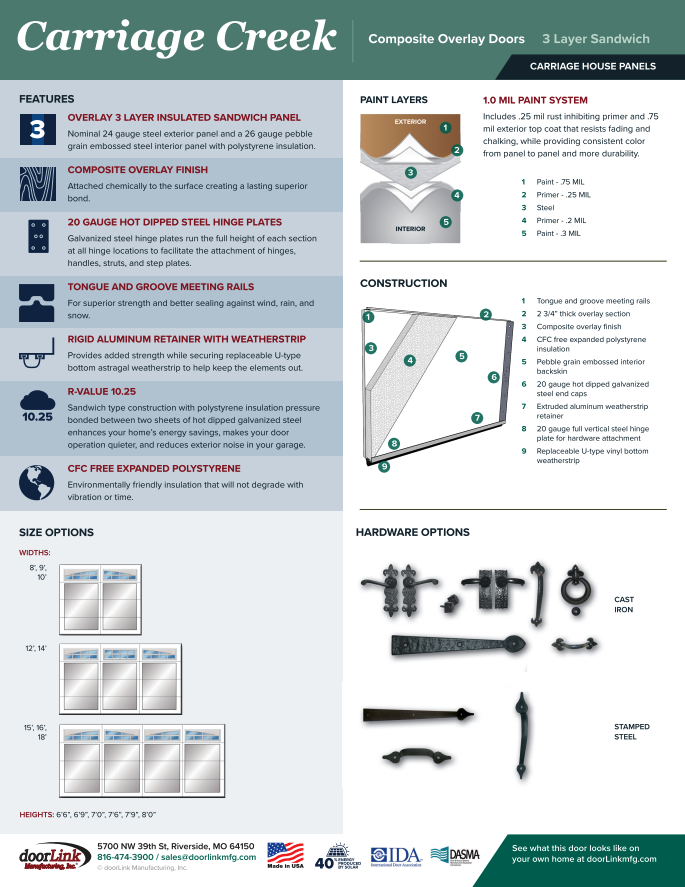

Standard Features
OVERLAY 3 LAYER INSULATED SANDWICH PANEL
Nominal 24 gauge steel exterior pare+ and a 26 gauge pebble grain embossed steel interior panel with polystyrene insulation.
COMPOSITE OVERLAY FINISH
Attached chemically to the surface creating a lasting superior bond.
20 GAUGE HOT DIPPED STEEL HINGE PLATES
Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.
TONGUE AND GROOVE MEETING RAILS
For superior strength and better sealing against the wind, rain, and snow.
RIGID ALUMINUM RETAINER WITH WEATHERSTRIP
Provides added strength while securing replacable U-type bottom astragal weatherstrip to help keep the elements out
R-VALUE 10.25
Sandwich type construction with polystyrene Insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home’s energy savings, makes your door operation quieter and reduces exterior noise In your garage.
CFC FREE EXPANDED POLYSTYRENE
Environmentally friendly Insulation that will not degrade with vibration or time.
Color Options
Construction
Size Options
Door Widths
- 8′
- 9′
- 10′
- 12′
- 14′
- 15′
- 16′
- 18′
Residential Steel Door Warranty
Panels Wide
□ □
□ □ □
□ □ □ □
Garage Door Painting Guide
Heights Available
- 6’6″
- 6’9″
- 7’0″
- 7’6″
- 7’9″
- 8’0″

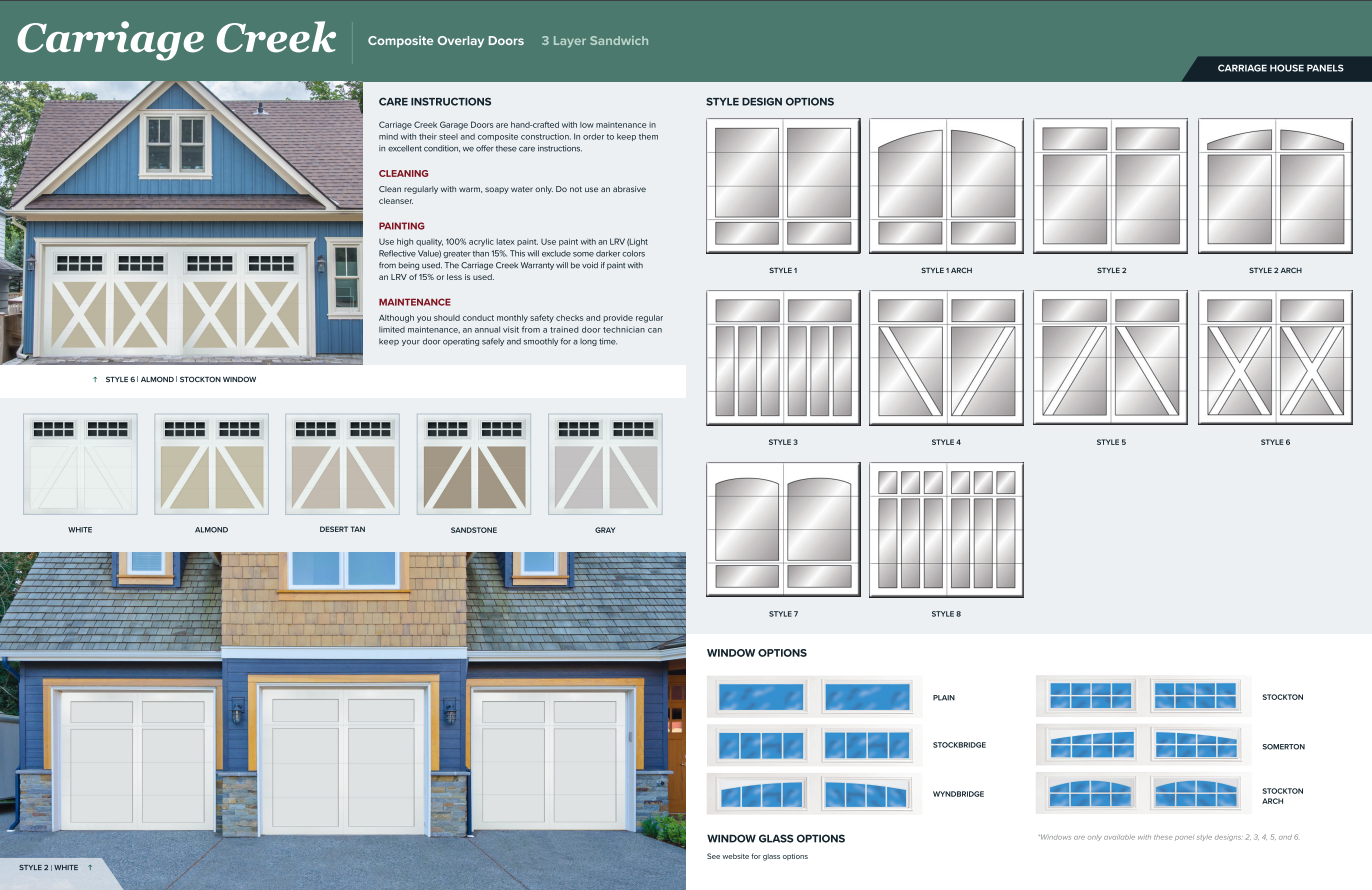

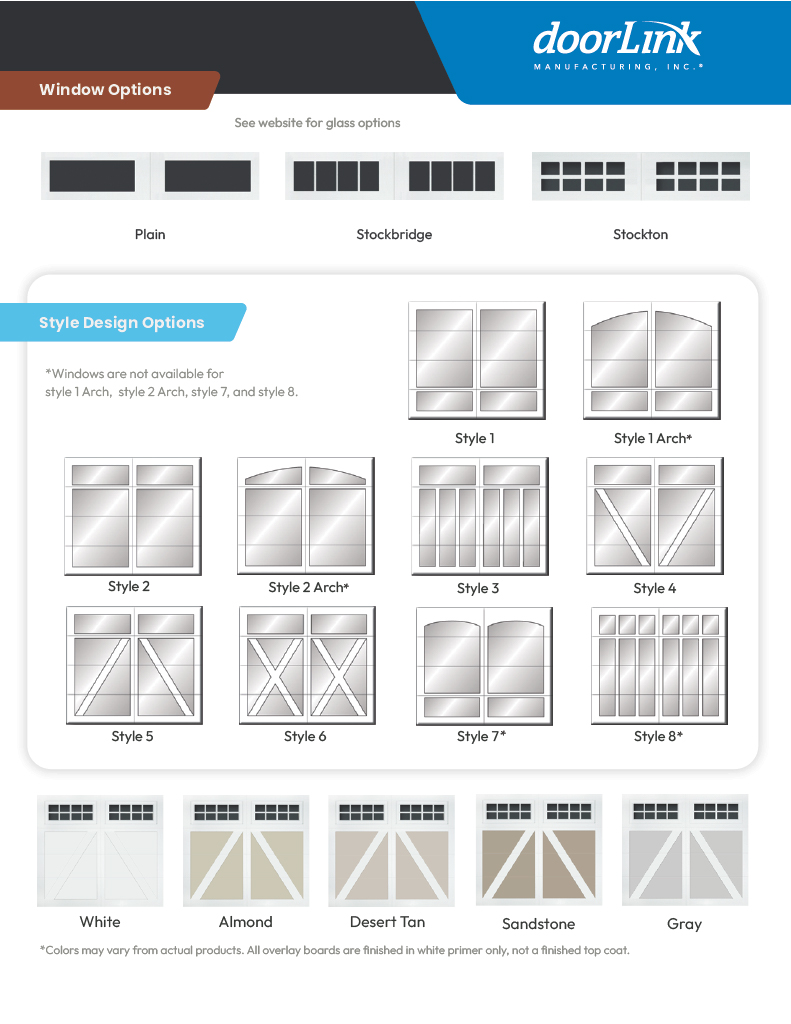

Glass Options
