440
Thickness: 24 Gauge
Paint: 1.0 Mil
441
Thickness: 24 Gauge
Paint: 1.0 Mil
Efficiency: 6.85 R-Value
Interior: Vinyl Skin

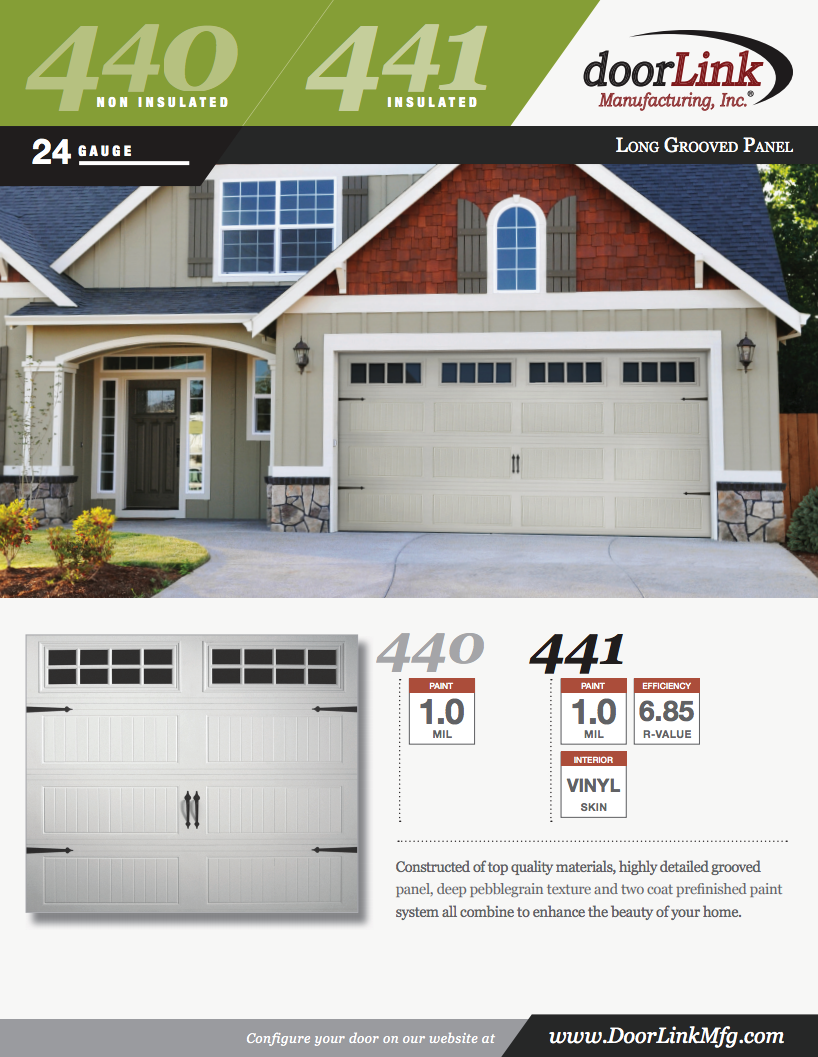

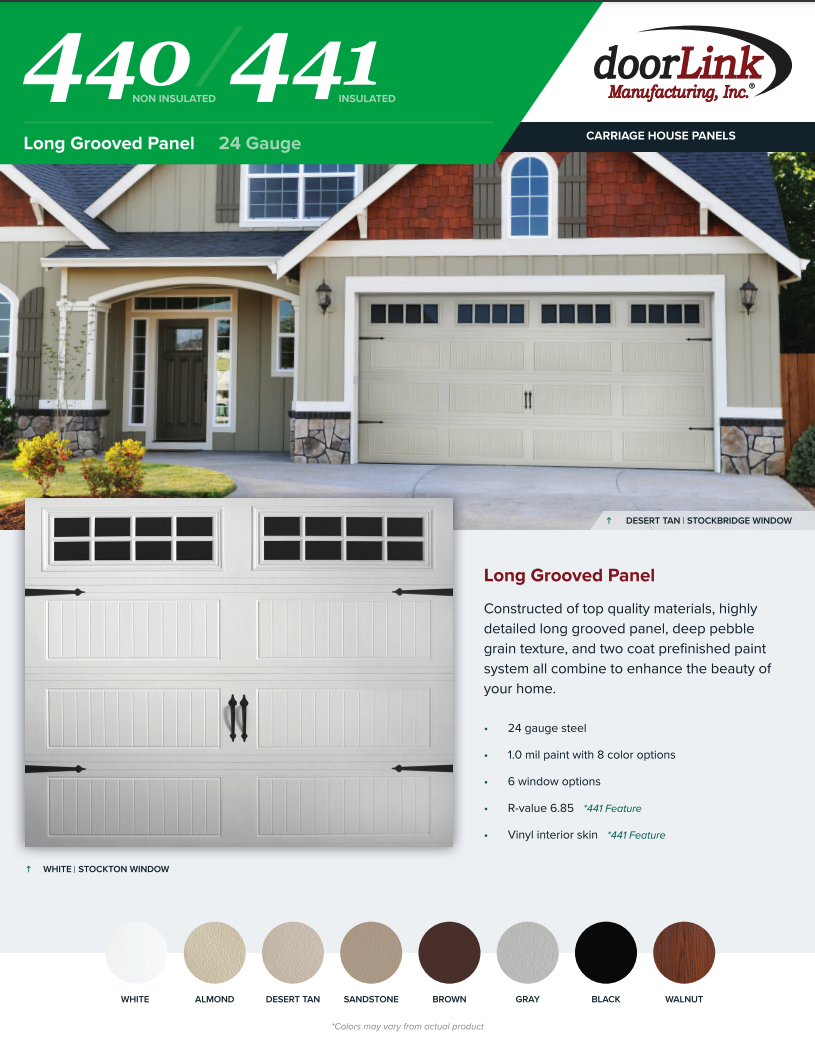

Constructed of top quality materials, highly detailed grooved panel, deep pebblegrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.
Available Windows
Somerton
Stockton Arch
Stockton
Wyndbridge
Stockbridge
Prairie
Not all glazing options may be available from all distributors.
No glazing on 18″ sections. Not all window inserts align with panel stamp design.
Standard Features
24 gauge metal
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
1.0 mil paint system
Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.
rolled safety edges on section joints
Eliminates sharp edges, and provides extra strength.
19 Gauge hot dipped galvanized stiles
Heavy duty metal styles give strong rigid support for all hinges, rollers and operator attachment.
Stiles attached with rivets
Provides superior strength when compared to common sheet metal joining methods.
tongue and groove meeting rails
For superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer
Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.
441 Additional Features
R Value 6.85 Insulation
Enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
CFC Free expanded polystyrene
Environmentally friendly insulation that will not degrade with vibration or time.
high impact plastic back cover
Protects the insulation, and enhances the interior look of your garage door.
Color Options
Construction
Size Options
Door Widths
- 8′
- 9′
- 10′
- 12′
- 14′
- 15′
- 16′
- 17′
- 18′
- 20′
- 22′
Residential Steel Door Warranty
Panels Wide
□ □ □ □
□ □ □ □ □ □
□ □ □ □ □ □ □ □
□ □ □ □ □ □ □ □ □ □
Garage Door Painting Guide
Heights Available
- 6’6″
- 6’9″
- 7’0″
- 7’6″
- 7’9″
- 8’0″
Glass Options
