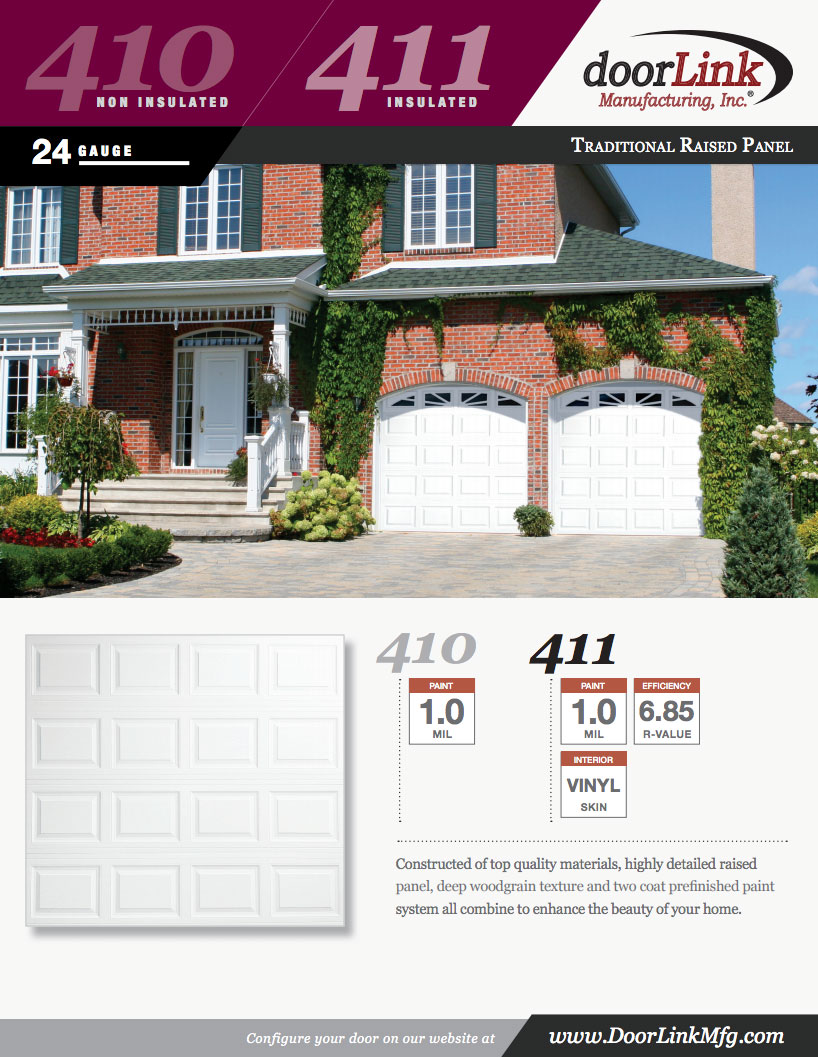

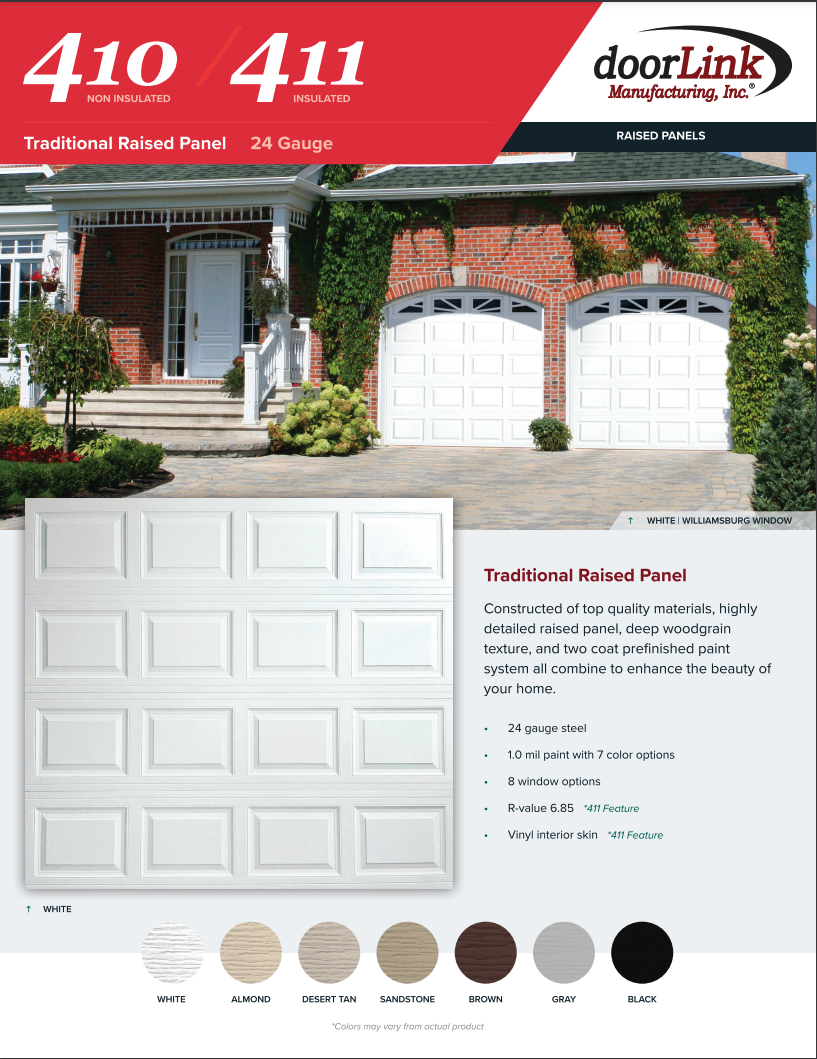

410
Thickness: 24 Gauge
Paint: 1.0 Mil
411
Thickness: 24 Gauge
Paint: 1.0 Mil
Efficiency: 6.85 R-Value
Interior: Vinyl Skin
Constructed of top quality materials, highly detailed raised panel, deep woodgrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.
Available Windows
Prairie
Waterton
Stockbridge
Stockton
Cascade
Williamsburg
Sherwood

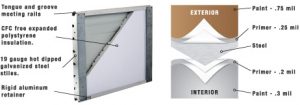

Standard Features
24 gauge metal
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
1.0 mil paint system
Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.
rolled safety edges on section joints
Eliminates sharp edges, and provides extra strength.
19 Gauge hot dipped galvanized stiles
Heavy duty metal styles give strong rigid support for all hinges, rollers and operator attachment.
Stiles attached with rivets
Provides superior strength when compared to common sheet metal joining methods.
tongue and groove meeting rails
For superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer
Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.
Color Options
Construction
Size Options
Door Widths
- 8′
- 9′
- 10′
- 12′
- 14′
- 15′
- 16′
- 17′
- 18′
- 20′
- 22′
Residential Steel Door Warranty
Panels Wide
□ □ □ □
□ □ □ □ □
□ □ □ □ □ □
□ □ □ □ □ □ □
□ □ □ □ □ □ □ □
□ □ □ □ □ □ □ □ □ □ □
Garage Door Painting Guide
Heights Available
- 6’6″
- 6’9″
- 7’0″
- 7’6″
- 7’9″
- 8’0″
Glass Options
