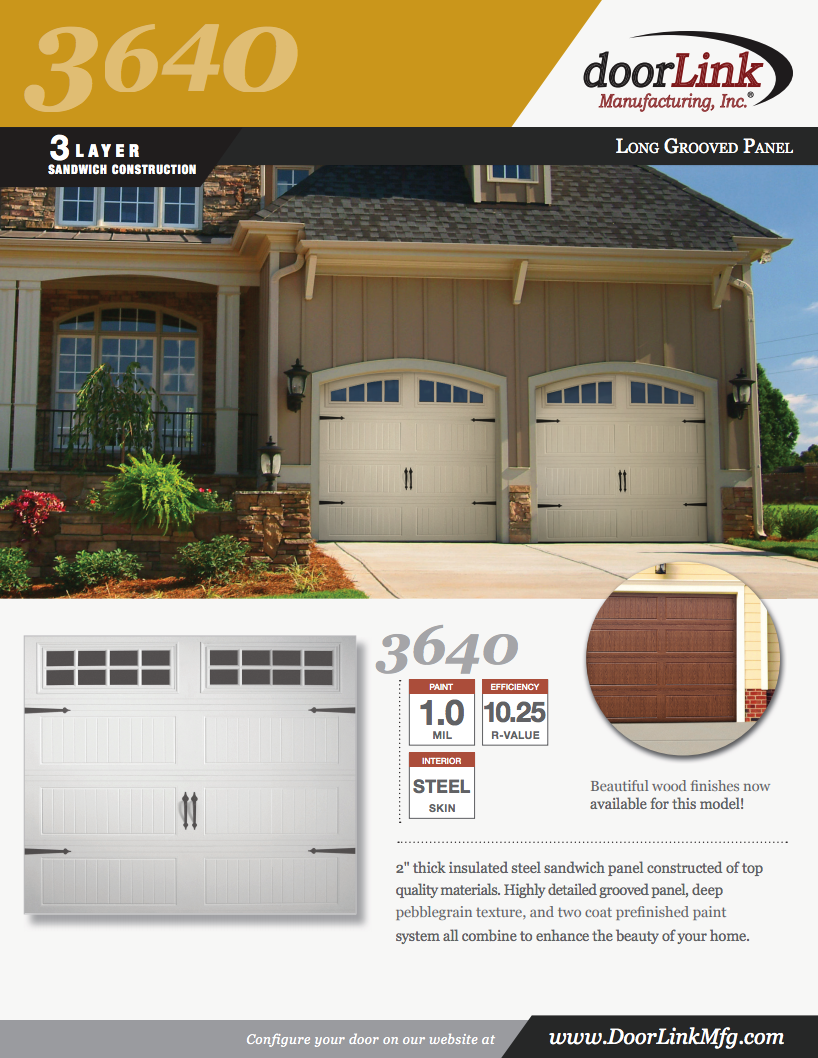

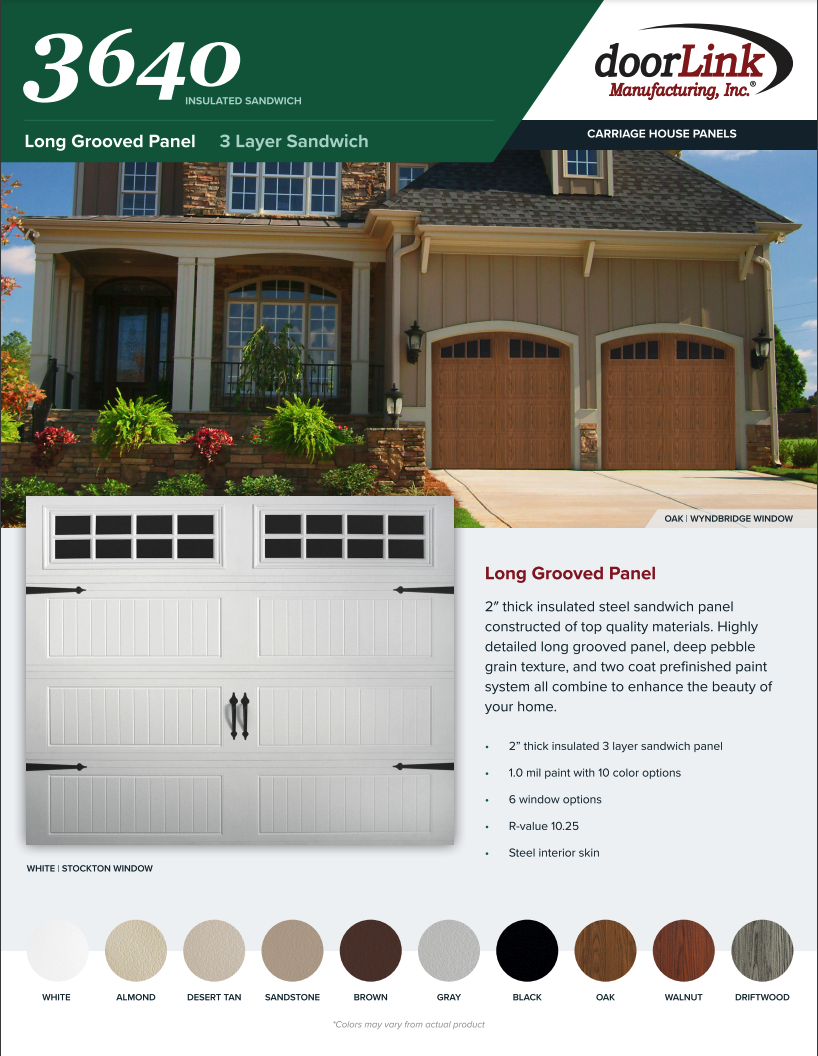

3640
Thickness: 3 Layer Sandwich
Paint: 1.0 Mil
Efficiency: 10.25 R-Value
Interior: Steel Skin
2″ thick insulated sandwich panel constructed of top quality materials. Highly detailed grooved panel, deep pebblegrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.
Available Windows
Somerton
Stockton Arch
Stockton
Wyndbridge
Stockbridge
Prairie
Not all glazing options may be available from all distributors.
No glazing on 18″ sections. Not all window inserts align with panel stamp design.

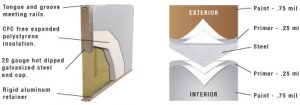

Standard Features
26 gauge metal
Hot dipped galvanized steel construction provides superior strength and durability.
1.0 mil paint system
Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.
20 Gauge hot dipped steel hinge plates
Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts and step plates.
tongue and groove meeting rails
For superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer
Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.
R Value 10.25 Insulation
Sandwich type construction with polystyrene insulation pressure bonded between two sheets of 26 gauge hot dipped galvanized steel enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.
CFC Free expanded polystyrene
Environmentally friendly insulation that will not degrade with vibration or time.
Directional Wood Grain on Walnut & Oak Colors
Directional wood grain pattern gives the appearance of traditional wood doors.
Color Options
Construction
Size Options
Door Widths
- 8′
- 9′
- 10′
- 12′
- 14′
- 15′
- 16′
- 17′
- 18′
- 20′
- 22′
- 24′
Residential Steel Door Warranty
Panels Wide
□ □ □
□ □ □ □
□ □ □ □ □
□ □ □ □ □ □
□ □ □ □ □ □ □
Garage Door Painting Guide
Heights Available
- 6’6″
- 6’9″
- 7’0″
- 7’6″
- 7’9″
- 8’0″
Glass Options
